Sunny Portal powered by ennexOS

Update november 2024

Nieuwigheden:

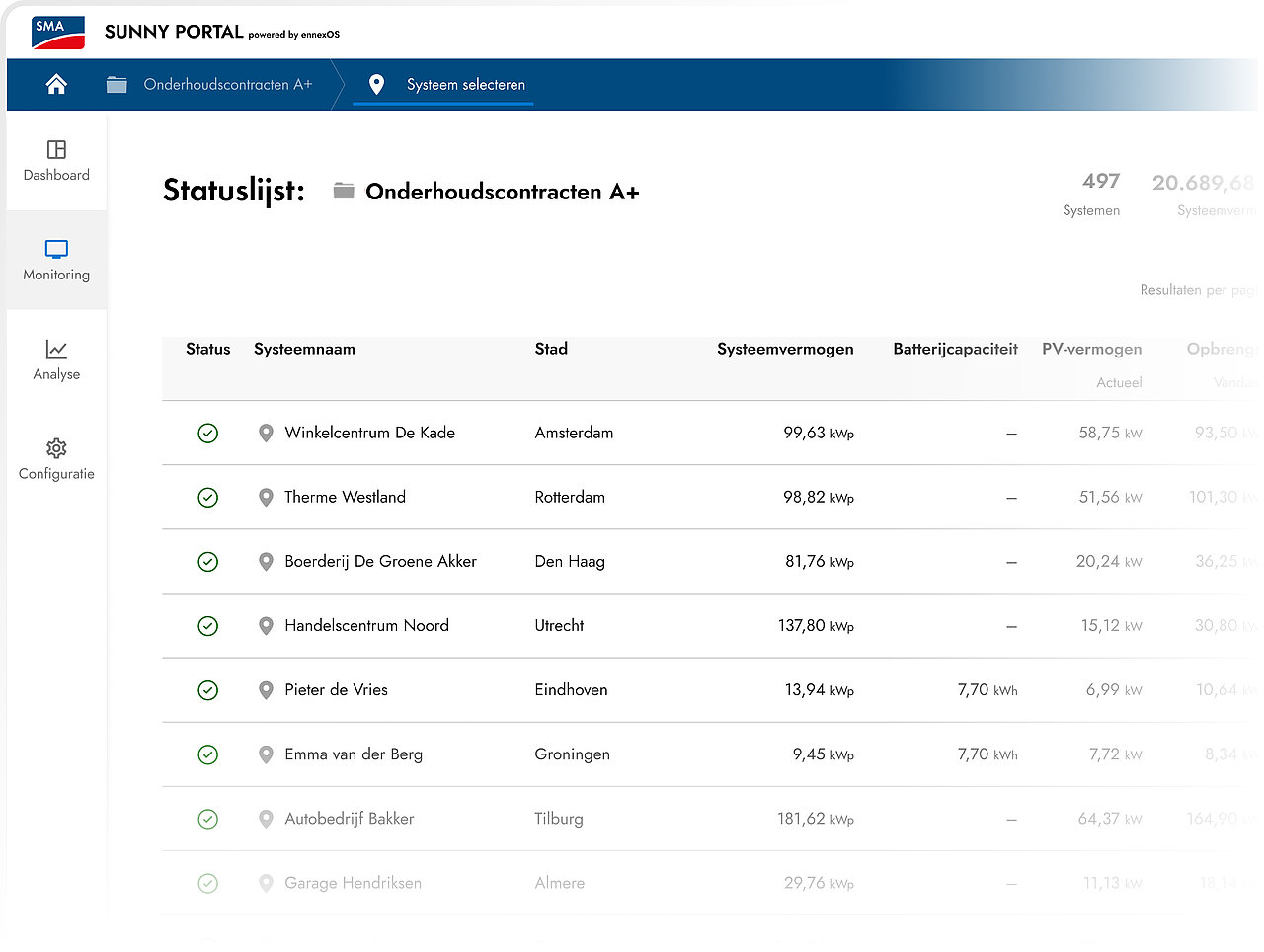

• Herziene "Statuslijst" voor systeemgroepen en systemen
  • Aanzienlijke verbetering van laadtijden voor accounts met veel systemen
  • Verbeterde weergave voor betere leesbaarheid
  • Wijziging van navigatie in de lijst: individuele rijen kunnen niet langer worden uitgebreid, maar verwijzen naar de statuslijst van het onderliggende niveau
• Grafieken in informatieverslagen
• Invoering van het gebruikersrecht "Gast"
  • Gastgebruikers hebben alleen-lezen toegang tot een systeem en kunnen geen wijzigingen aanbrengen
  • Een gast heeft geen mogelijkheid om de SMA Energy App te gebruiken voor het betreffende systeem
• Aanpassingen voor de Sunny Home Manager 2.0
  • Configuratie van "Maximale energiekosten" voor direct communicerende verbruikers onder Apparaateigenschappen > Apparaatbeheer > Optionele energiebehoefte
  • Configuratie van het Shelly-wachtwoord onder Configuratie > Communicatieopties > Shelly Smart Home Control

Verbeteringen

• Verbeteringen in apparaatbeheer
  • Eenvoudige vervanging van omvormers met Webconnect zonder apparaten handmatig te deactiveren
  • Eenvoudig uitbreiden van systemen zonder datalogger met een Sunny Home Manager 2.0 of SMA Data Manager
  • Ondersteuning voor de vervanging van communicatiemodules in omvormers

Update juni 2024

Voor installaties met Sunny Home Manager 2.0

• M.b.t. de tijd variabel stroomtarief
  • Configuratie van een stroomtarief van het tarieftype "M.b.t. de tijd variabel tarief (time-of-use)" onder Configuratie > Installatie-eigenschappen > Terugleververgoeding en Stroomtarief > Stroomtarief
• Externe stroomtransformator
  • Configuratie van "Externe stroomtransformator" onder Configuratie > Apparaatbeheer > Home Manager > Apparaateigenschappen Uitgebreide configuraties
• Update verbruikerbalans
  • Uitbreiding van de verbruikertegels met de weergave van tijdvensters, looptijden en planningen incl. tooltips op een tijdlijn onder Monitoring > Verbruikerbalans

Verbeteringen

• Betrouwbare alarms bij uitval van omvormers Tot nu toe was een afwijking tussen de toestellen van minstens 1 kWh/kWp noodzakelijk. Vanaf nu reageert de omvormervergelijking vanaf een specifieke opbrengst van 0,05 kWh/kWp, zonder rekening te houden met de afwijking tussen de toestellen.

Update februari 2024

Nieuwe functies

• Nieuw alarm voor de batterijbewaking
  • Configuratie onder "Berichten"
  • Opgave van een bovenste en onderste grenswaarde en opgave van een tijdspanne waarbinnen de laadtoestand van afzonderlijke batterijen zich buiten de grenswaarden mag bevinden (min. 1 uur, max. 100 dagen)
  • Als het batterijsysteem geen gegevens meer levert binnen deze tijdspanne, wordt er een alarm geactiveerd
  • Melding per e-mail naar aangemelde ontvangers
• Verbruikerbalans
  • Weergave van de energiemix voor elke verbruiker
  • Prognose: weergave van aanbevolen handelingen*
  • Prognose: weergave van verbruiksprognose*

*Voor installaties met Sunny Home Manager 2.0

Uitbreidingen voor installaties met Sunny Home Manager 2.0 in ennexOS

• Geprognotiseerd laden van de batterij
  • Configuratie onder „Configuratie > Energiebeheer > Batterij“
  • Opgave van de vereiste laadtoestand van de batterij [%] voor het activeren van het geprognotiseerd laden van de batterij
  • Activeren van een verkorte prognoseperiode om op de actuele dag meer van de PV-energie die anders weggeregeld wordt in de batterij te laden
• Stroomtarief
  • Configuratie onder „Installatie-eigenschappen > Terugleververgoeding en stroomtarief“
• optimalisatiedoel
  • Configuratie van het optimalisatiedoel (ecologisch, economisch) voor het energiebeheer
• Herstartfunctie onder „Configuratie > Apparaatbeheer > Apparaateigenschappen“

Update October 2023

New feature

• Load balance view with weather and PV forecast

Improvements

• Robustness of the ‘Energy flow’ widget increased

Update August 2023

New feature

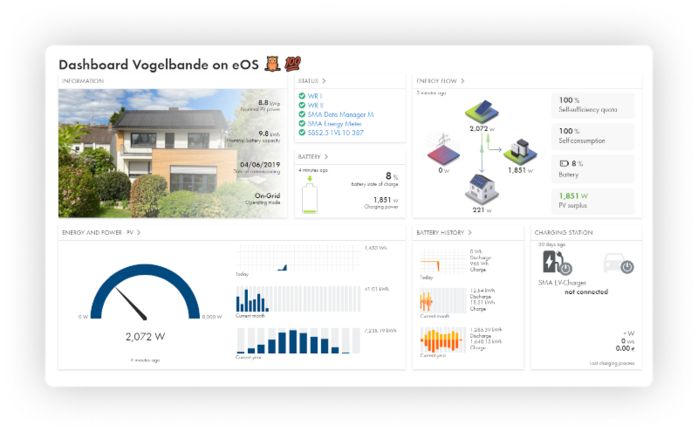

• Energy flow visualization on the dashboard, known from the SMA Energy App

Improvements

• Easier registration of SMA Smart Connected
• Bugfixes

Update March 2023

Improvements

• Bugfixes

Update January 2023

New feature

• PV sub-arrays
  • PV system can now be created with multiple orientations/tilts
  • PV sub-arrays are specified when creating the system or later under Configuration > System properties > PV modules
  • Sensors for irradiation, module temperature and outside temperature can be assigned separately to each sub-array in order to improve the calculation of the performance ratio

Improvements

• Virtual loads
  • Improved user guidance when creating virtual loads
  • Deletion of virtual loads is now possible
• Bug Fixes
  • Wrong scale in preview graph

Update September 2022

Improvements

• Bugfixes

Update June 2022

Improvements

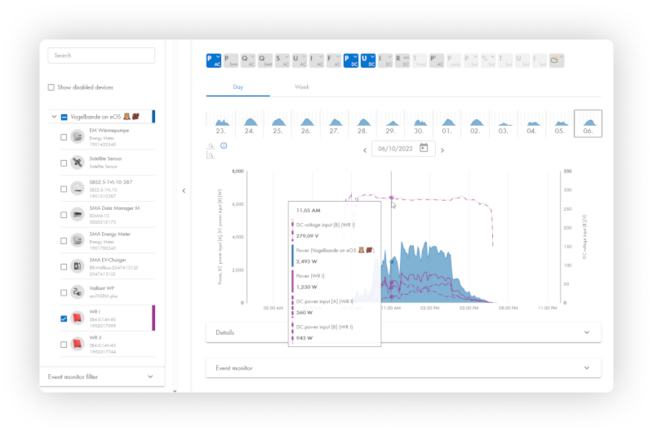

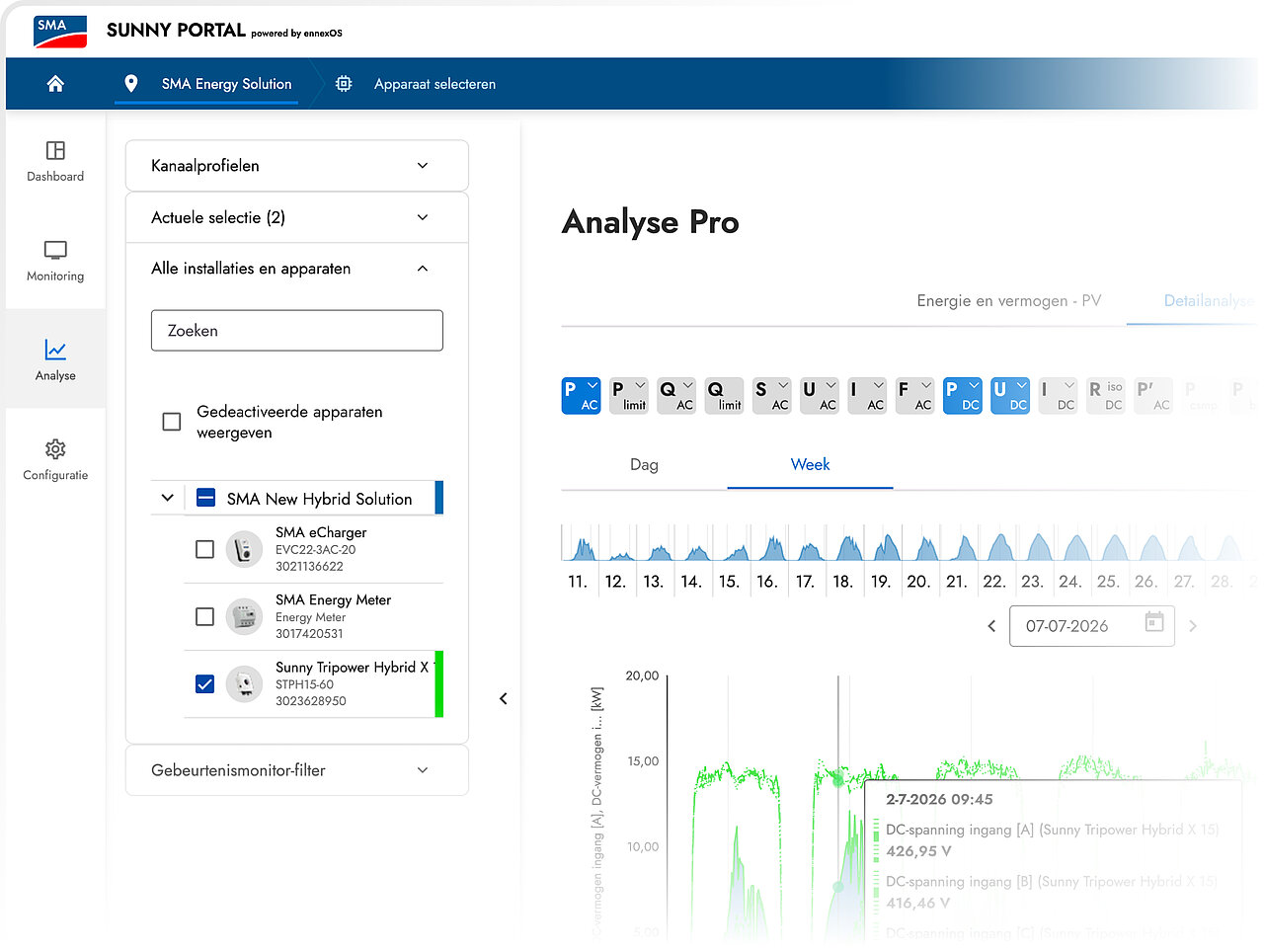

• Analysis Pro view:
  • Simpler selection of multiple devices
  • Clearer representation of devices
  • Performance optimizations for systems with many devices

Update April 2022

New features

• System image upload for presentation on dashboard
• Chronological display of changes in device parameters

Improvements

• New language: Swedish

Update January 2022

Improvements

• New language support: Danish, Hungarian and Romanian (later in Q1 – Swedish)
• Redesigned forms for better usability
• Configuration of a plant specific CO₂ factor to adapt to the energy mix of the individual utility company

Update September 2021

New features

• Monitoring of loads
  • Based on energy meters and their measurements it is now possible to create virtual loads as devices and monitor them
  • Loads are shown grouped (e.g. light, heating and warm water) in the “Energy balance” view
  • Configuration is done in the “Device administration” through the additional menu (3 dots) on energy meters that are not yet linked to other devices

Improvements

• Improved menu with text and updated Icons

Update June 2021

Improvements

• New view “Yearly comparison” (Analysis)
• Many dashboard widgets now have a direct link to the corresponding overview pages for easier navigation
• Optimized readability of graphs (Analysis Pro view)
• New option to activate “Automatic updates” of communication devices and their subdevices under Configuration > System properties
• From now on, notifications can only be sent to registered users (unregistered users have been informed about this change in the notifications for the past few weeks)

Update January 2021

Improvements

• Added new notifications for compatibility with IEC 62109-2 & AS 5033
• Bugfixes

Update September 2020

Improvements

• Under Configuration > Device administration you now see the hierarchy between the data logger and the secondary devices
• Event reports are now available with an “Hourly” option
• The status list now includes the additional column “Total energy”

Update July 2020

PV inverter comparison view

With this release, our “Detailed Report” is also available as an interactive view in the “Analysis” menu.
The “PV Inverter comparison” view makes it easy to compare all the PV inverters with each other. The additional highlighting of the devices that under or over step the tolerance helps you to find the sweet spot for your inverter monitoring.

Improvements

• We added a zoom option to the charts.
• Under Configuration > Device administration you now have a flexible filter option to easier manage systems with many devices.
• Event reports are now covering all event categories.
• We optimized the calculation of the “Direct consumption” in the energy balance view.

Update April 2020

Sensor data on the Dashboard

With this release, it will be possible to display current measured values from sensors, that are present in a PV system, directly on the dashboard. Until now, the measured values were only available via the "Analysis Pro" view.

At the plant level, the sensors that were configured under the menu item Configuration > Sensor assignment are automatically displayed.
At the device level e.g. for a Moxa I/Os also all sensor channels are displayed on the device dashboard. Even reported percentages can be displayed, for example to represent the filling level of a diesel generator.

The individual sensor widgets can be turned on/off for each dashboard.

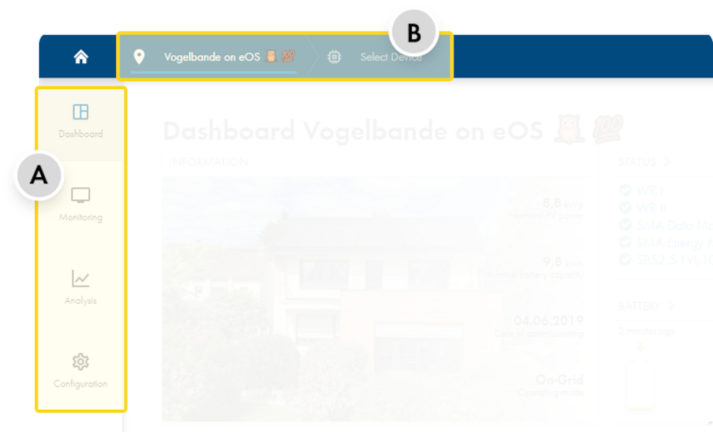

Simplified navigation

We have optimized the usability of the navigation bar. Until now, it was possible to jump directly to a status list with one click or, if you only clicked on the symbol, to select individual elements directly in the navigation via a submenu. It was difficult to understand and hardly recognizable.
From now on, one click always opens a submenu in which you can directly select a corresponding sub section or a device etc.. The detour via the status list is omitted.
You can now access the status list both via an additional entry in the "Monitoring" function area and via the submenu in the navigation bar.

We have also cleaned up the submenu itself, which is called up via the navigation bar. In the upper area, all grouped elements are now directly one below the other. They are also marked with their distinctive symbol. This makes it much easier to differentiate between the individual entries.

Update September 2019

Faster site setup

• Less is more
  With this release we simplify the registration of a new site.
  It is now no longer necessary to enter the address data of the installer and the system owner. This is only needed if the site is monitored by our integrated "Smart Connected“ feature.
  When registering the site, you only have to select whether you are the installer or if you are the owner of the system yourself.
• Invite new users
  Until now, it was necessary that users already have a Sunny Portal account before they could be given access to a site. That was complicated. From now on, you can invite new users to the ennexOS platform, both directly during the initial site setup and from the user administration of a site.

Introduction of user roles

There was always the possibility to assign certain access rights to each. This allowed to specify what type of information a user could view or edit. However, the rights do not tell anything about the function of a person in relation to the site. With this update, we introduce the following user roles:

• Owner
• Installer
• Operator

The assignment of the roles currently has no further effect. On the one hand, it serves as documentation and on the other hand it allows us to address the right person either in regards to “Smart Connected” or other cases.

More improvements

• Dashboard widgets
  With this update, we have adjusted the times shown in the dashboard widgets. So far, the last 24 hours, the last 7 days and the last 30 days were shown there. That was apparently not optimal.
  The widgets now show the current day, the current month and the current year.
• Notification Center
  In the upper navigation bar, there is now a new icon, a "bell". There you find our new notification center, which will inform about updates of Sunny Portal itself and will show important events of the user´s sites.
• New menu structure
  We have sorted the menu items and aligned them across the different site hierarchies, making them easier to find.
• New report with detailed device information
  Within the notifications, a new report is available with this release. Detailed information about all the PV inverters and their performance are listed in tabular form. In addition, when the inverter comparison is activated, devices that performed outside the defined tolerance are marked in color.

Update June 2019

Russian as new Language supported

New Features for „Analysis Pro“

• Production Comparison
  Besides the tab „Detailed Analysis“ there is now a new tab „Energy & Power“. Within this new view the user is able to easily compare absolute and specific yields of inverters for individual days, months and years. In addition to that it is possible to do comparisons with multiple plants.
• Personalized selection of measurements
  Within the left filter sidebar the user has now access to the new feature “Channel Profiles”. They allow the user to easily select various basic measurement combinations that are predefined through SMA. Additionally the user is able to save individual combinations of measurements as his own “Channel Profiles”, which will then be available for all plants in the portfolio.

Update March 2019

New functions for Sunny Portal powered by ennexOS

• Supports the exchange of a SUNNY WEBBOX against a SMA Data Manager
  Energy and power data of existing plants with one or several Sunny WEBBOXes can be transfered from Sunny Portal Classic to Sunny Portal powered by ennexOS when you create a new plant.
  Before that only the transfer of plants with the SMA Cluster Controller was possible.
• Support of plural SMA Data Manager in one plant (Master/Slave configuration)
  From now on plural SMA Data Manager can be registered in one plant. This can be necessary when a plant has more than the 50 devices which are supported by the SMA Data Manager M or e.g. large existing plants with plural Sunny WebBoxes or SMA Cluster Controller which should be converted to the SMA Data Manager M.
  During the commissioning an operating modus can be selected which determines the role of the Data Manager within the plant. Either he is a Master and can control the entire system and sends control commands to subordinate SMA Data Manager M´s and inverters or he is configured as a Slave an is only able to receive control demands from the Master send them to the inverter.
  For now there is only one Master and one grid connection point in the entire plant.
• Virtual devices on base of energy meters
  With the release it is now possible to visualize other energy producers in the system, besides PV. The following virtual devices can be implemented and monitored energetically:
  • CHP unit
  • Diesel generator
  • Hydro power plant
  Within the plant the devices are implemented manually. Either the measured data can be entered into the portal the device is connected to an energy meter which has a connection to the SMA Data Manager. The delivers the data for the device.
  Besides new energy sources virtual inverters (several foreign inverters) can be implemented into the system with an extra energy meter.

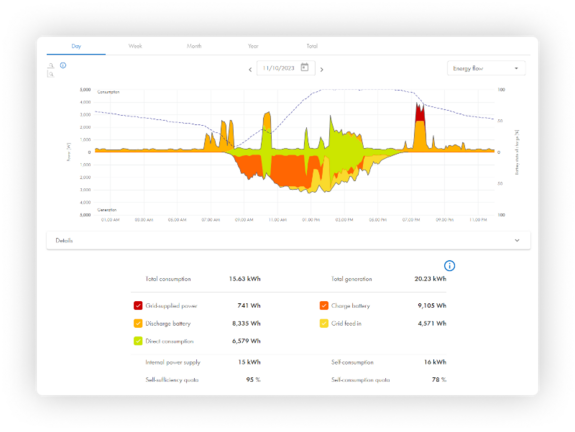

• View of energy sources within the energy balance
  When there are plural energy sources monitored there is the possibility to see all energy sources an their interactions.
• Data migration of plants with a SUNNY WEBBOX from ‚Sunny Portal Classic‘ to Sunny Portal powered by ennexOS:
  Data of WebBox plants from the Classic Portal can be copied in the ennexOS portal, if instead of the WebBox a EDMM (and COM GW) is implemented.
• Support of large plants with more than one Data Manager M within one plant:
  The EDMM supports up to 50 devices. If there are more devices in the plant (e.g. an old WebBox), then the EDMM´s can be matched in one plant. Hint: New plants only, no already registered plants
• Cross Sector Energy Monitoring
  For the expansion of "Cross Sector Energy Monitoring" abilities we support other producers besides PV. Visualization of further energy producers in the energy balance which are implmented with meters (SMA Energy Meter or other Modbus TCP meters):
  • CHP unit
  • Diesel generator
  • Hydro power plant
